OVERVIEW

•   Material - High quality low carbon steel wire

•   Material - Stainless steel wire

ASSORTMENTS

•    Electro galvanized before welding or after

•    Hot-dip galvanized before welding or after

•    Plastic coated after welding

CHARACTERISTICS

•    Have the strong characteristic of antisepsis and contradicting oxygenation

USES

•    Widely used in industry, agriculture, construction, transportation, mine field, lawn, cultivation, etc, professional guard, decorate, machine protection etc.

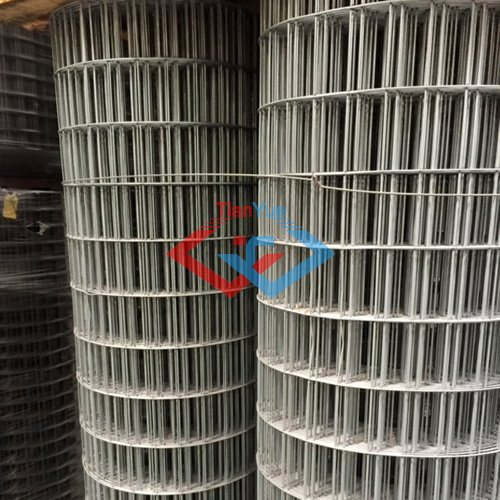

Welded Wire Mesh   Roll
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4"   x 1/4"	6.4mm   x 6.4mm	22,23,24
3/8"   x 3/8"	10.6mm   x 10.6mm	19,20,21,22
1/2"   x 1/2"	12.7mm   x 12.7mm	16,17,18,19,20,21,22,23
5/8"   x 5/8"	16mm   x 16mm	18,19,20,21,
3/4"   x 3/4"	19.1mm   x 19.1mm	16,17,18,19,20,21
6/7"   x 6/7"	2.18mm   x 2.18mm	16,17,18,19,20,21
1"   x 1/2"	25.4mm   x 12.7mm	16,17,18,19,20,21
1-1/2"   x 1-1/2"	38mm   x 38mm	14,15,16,17,18,19
1"   x 2"	25.4mm   x 50.8mm	14,15,16
2"   x 2"	50.8mm   x 50.8mm	12,13,14,15,16
Technical Note:
1.Standard   roll length: 30m; width: 0.5m to 1.8m
2.Special   sizes available as requested
3.   Packing: in waterproof paper in rolls. Custom packing available as requested.



PVC Coated   Welded Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/2"   x 1/2"	12.7mm   x 12.7mm	16,17,18,19,20,21
3/4"   x 3/4"	19mm   x 19mm	16,17,18,19,20,21
1"   x 1"	25.4mm   x 25.4mm	15,16,17,18,19,20
Technical Note:
1.   Standard roll length: 30m; width: 0.5m to 1.2m
2.   Special sizes available as requested
3.   Packing: in waterproof paper in rolls. Custom packing available as requested.



Galvanized Fencing Mesh
Opening		Wire   Diameter<BWG>
In inch	In metric   unit(mm)
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical   Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available as requested
3. Packing: in waterproof paper in rolls. Custom   packing available as requested.
