OVERVIEWS

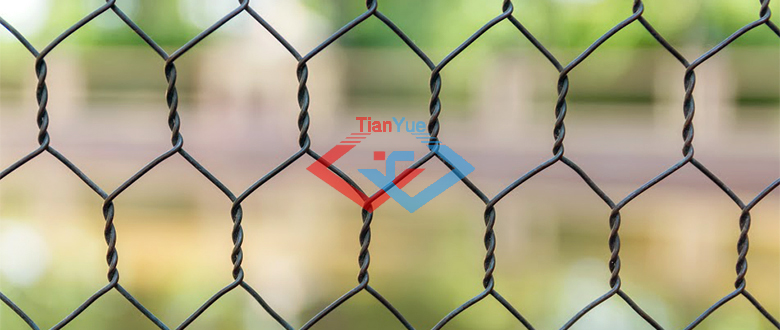

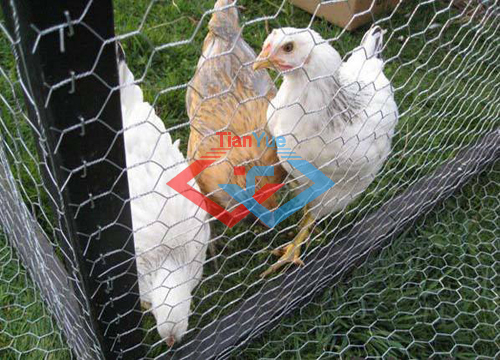

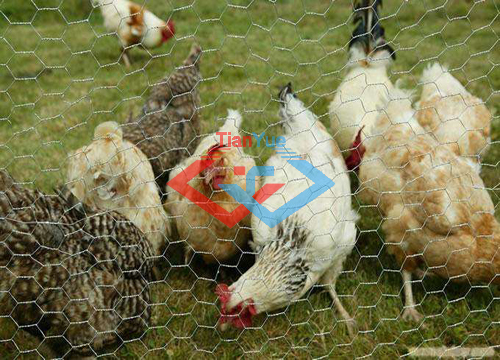

Hexagonal Wire Netting (Chicken/Rabbit/Poultry Wire) is made of low carbon Iron Wire, the mesh is firm in structure and has flat surface. It is extensively used in Industrial and Agriculture, Construction as reinforcement and fencing. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc.

ASSORTMENTS

•    Electro Galvanized before/After Weaving

•    Hot Dipped Galvanized before/After Weaving

•    PVC Coated Before/After Weaving

•    Stainless Steel Wire

•    Galvanized Drawn Iron Wire





SPECIFICATIONS

Galvanized   hexagonal wire netting
Mesh			Min. Galv.	Width	Wire Gauge (Diameter)
Inch	mm	Tolerance(mm)	G/SQ.M		BWG
3/8"	10mm	±1.0	0.7mm   -145	2'   - 1M	27,   26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm   - 95	2'   - 2M	25,   24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm   - 70	2'   - 2M	27,   26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm   - 55	2'   - 2M	25,   24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm   - 55	1'   - 2M	25,   24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm   - 40	1'   - 2M	23,   22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm   - 45	1'   - 2M	23,   22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm   - 40	1'   - 2M	23,   22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm   - 30	1'   - 2M	21,   20, 19, 18
3"	75mm	±8.0	1.4mm   - 30	2'   - 2M	20,   19, 18, 17
4"	100mm	±8.0	1.6mm   - 30	2'   - 2M	19,   18, 17, 16

Note:

1.) The above tolerance comply with standard EN10223-2:1997
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; also it is only for hot dipped Galvanized Netting.

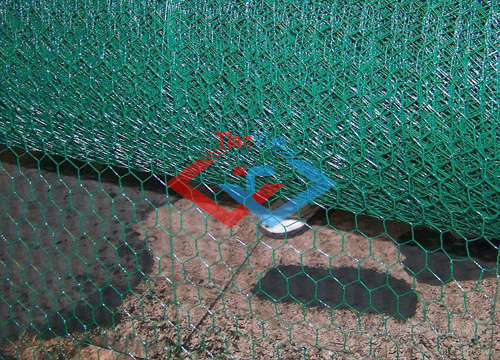

PVC Coated   Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM	-	-
1/2"	13mm	0.6mm   - 1.0mm	2'   - 2M
3/4"	19mm	0.6mm   - 1.0mm	2'   - 2M
1"	25mm	0.7mm   - 1.3mm	1'   - 2M
1-1/4"	30mm	0.85mm   - 1.3mm	1'   - 2M
1-1/2"	40mm	0.85mm   - 1.4mm	1'   - 2M
2"	50mm	1.0mm   - 1.4mm	1'   - 2M



Note:

1.)The thickness of PVC Coating is usually 0.2-0.4mm; others may be arranged as per buyers' request

PACKAGE

Normally each roll packed in water proof paper, then in thermo foil (Shrink Plastic)
