OVERVIEWS



Gabion Box is wire containers made of hexagonal wire netting.

It is the most common type of gabion structures.

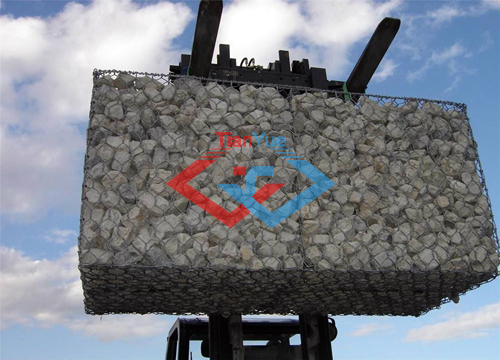

It is a rectangular woven wire basket filled with rock to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects.

They are also used for erosion control, bank stabilization, architectural and urban design features, noise attenuation structures and weirs.



Wire diameter varies with the hexagonal nettings.

For hexagonal wire netting with no PVC coating, the wire diameter ranges from 2.0mm to 4.0mm.For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm.The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

Opening(mm)	Wire Dia. (Metal Wire)(mm)	Wire Dia. (PVC Coated)   Inner/Outside(mm)	Roll width(m)
60X80	2.0-2.8	2.0/3.0-2.5/3.5	4.3
80X100	2.0-3.2	2.0/3.0-2.8/3.8	4.3
80X120	2.0-3.2	2.0/3.0-2.8/3.8	4.3
100X120	2.0-3.4	2.0/3.0-2.8/3.8	4.3
100X150	2.0-3.4	2.0/3.0-2.8/3.8	4.3
120X150	2.0-4.0	2.0/3.0-3.0/4.0	4.3
Note: Special   Hexagonal Gabion specifications can be produced by the customer's   requirements





MATERIALS

•    Hot dip galvanized wire, PVC coated wire, low carbon steel wire

CHARACTERISTICS

•    Economic, just fill the stone into the gabions and seal it.

•    Simple installation, No special technology needed.

•    Weather proofs under natural destroy, corrosion resistant.

•    No collapse even under big scope of deforming.

•    Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

•    Good permeation can prevent the damage by hydrostatic.

•    Less transport freight, it can be folded together for transport and further installation.

•    Flexibility, extra durable, Monolithic and flexible structures, tolerates differential settlement, economical retaining systems, Permeability of the front face

APPLICATIONS

•    Control and guide of water or flood

•    Flood bank or guiding bank

•    Preventing of rock breaking

•    Water and soil protection

•    Strengthening structure of soil

•    Construction of railway embankments

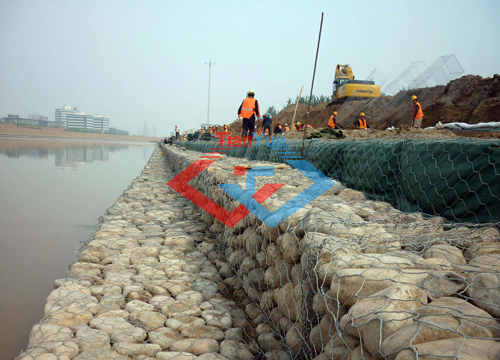

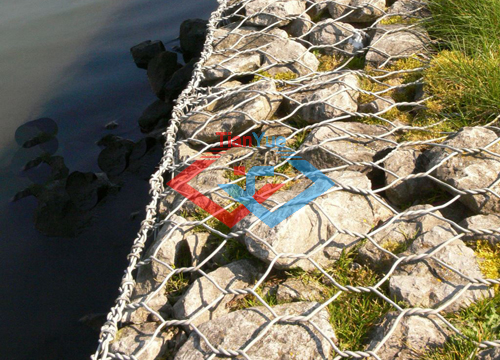

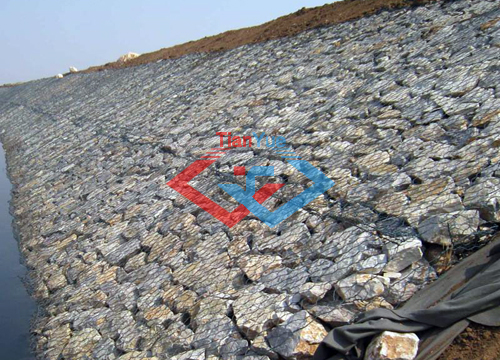

•    Bridge Protection, Coast protection, Rivers banks protecting

•    On retaining walls used for their flexibility, robustness and high drainage capacity

•    Protection engineering of seaside area
