OVERVIEW



Material: low carbon steel wire, stainless steel wire

Type of weaving: plain weave

Packing: wrapped with waterproof paper then covered with hessian-cloth. Paper box, wooden box, and pallet.

Uses: Square Wire Mesh is widely used in industries and constructions to sieve grain powder filter liquid and gas, for other purposes like safe guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.

Specifications: Please refer to lists below for reference. Sizes not listed available at customer’s request.

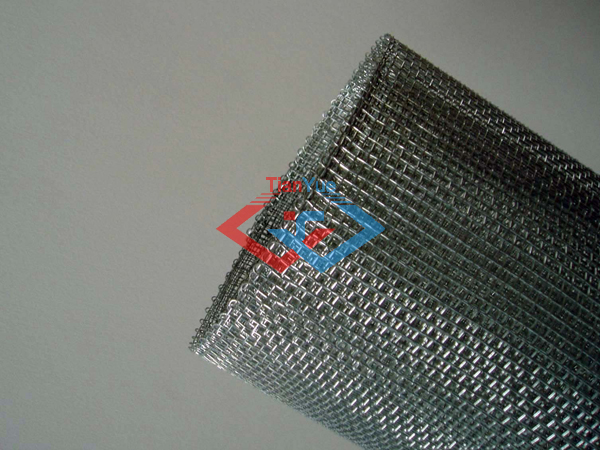

Square wire mesh   .plain weave
Mesh/inch	Wire   diameter( mm )	Aperture   ( mm )	Mesh/inch	Wire   diameter( mm )	Aperture   ( mm )
2mesh	1.6	11.1	14mesh	0.45	1.36
4mesh	1.2	5.15	16mesh	0.4	1.19
5mesh	1	4.08	18mesh	0.35	1.06
6mesh	0.8	3.43	20mesh	0.3	0.97
8mesh	0.6	2.57	30mesh	0.25	0.59
10mesh	0.55	1.99	40mesh	0.2	0.44
12mesh	0.5	1.61	50mesh	0.16	0.35
