OVERVIEWS

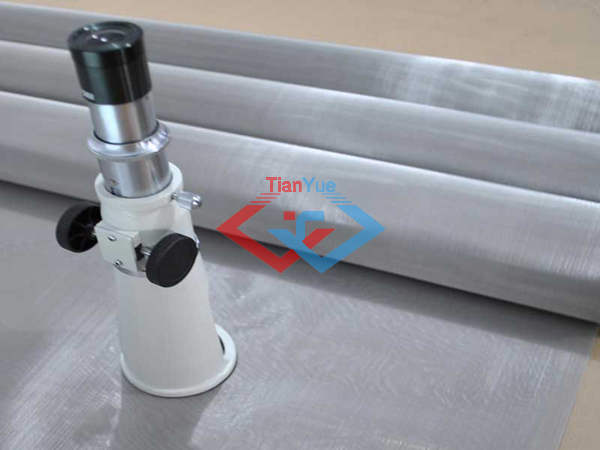

Woven patterns applied for stainless steel wire mesh or wire cloth can be plain weave, twill weave, Dutch plain weave or Dutch twill weave, while square woven wire mesh is made by either plain weave or twill weave. Woven wire mesh with equal mesh count horizontally or vertically has square opening, hence also called square opening wire mesh, or single layer wire mesh.



Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L for stainless steel woven wire mesh and cloth.
Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.
Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.

Stainless Steel Woven Wire Mesh(Plain Weave)

mesh/inch

wire   diameter

aperture

mesh/inch

wire   diameter

aperture

(mm)

(mm)

(mm)

(mm)

2mesh

1.8

10.9

60mesh

0.15

0.273

3mesh

1.6

6.866

70mesh

0.14

0.223

4mesh

1.2

5.15

80mesh

0.12

0.198

5mesh

0.91

4.17

90mesh

0.11

0.172

6mesh

0.8

3.433

100mesh

0.1

0.154

8mesh

0.6

2.575

120mesh

0.08

0.132

10mesh

0.55

1.99

140mesh

0.07

0.111

12mesh

0.5

1.616

150mesh

0.065

0.104

14mesh

0.45

1.362

160mesh

0.065

0.094

16mesh

0.4

1.188

180mesh

0.053

0.088

18mesh

0.35

1.06

200mesh

0.053

0.074

20mesh

0.3

0.97

250mesh

0.04

0.061

26mesh

0.28

0.696

300mesh

0.035

0.049

30mesh

0.25

0.596

325mesh

0.03

0.048

40mesh

0.21

0.425

350mesh

0.03

0.042

50mesh

0.19

0.318

400mesh

0.025

0.0385

Stainless Steel   Woven Wire Mesh (Twill Weave)

mesh

wire   diameter(mm)

aperture(mm)

material(AISI)

250mesh

wire   dia.0.040mm

0.063

304   or 316

300mesh

wire   dia.0.040mm

0.044

304   or 316

325mesh

wire   dia.0.035mm

0.043

304   or 316

350mesh

wire   dia.0.030mm

0.042

304   or 316

400mesh

wire   dia.0.030mm

0.033

304   or 316

Stainless Steel   Wire Cloth (Plain Dutch Weave)

Mesh

Wire   Diameter(mm)

Aperture

Vertical

Horizontal

Vertical

Horizontal

Microns

12mesh

64mesh

0.62mm

0.42mm

270-290um

14mesh

80mesh

0.50mm

0.30mm

220-240um

24mesh

110mesh

0.38mm

0.25mm

115-125um

30mesh

160mesh

0.23mm

0.18mm

95-100um

40mesh

200mesh

0.18mm

0.14mm

70-75um

50mesh

250mesh

0.14mm

0.11mm

60-63um

Stainless Steel   Wire Cloth (Twill Dutch Weave)

Mesh

Wire   Diameter(mm)

Aperture

Vertical

Horizontal

Vertical

Horizontal

Microns

20mesh

250mesh

0.25mm

0.23mm

110-120um

32mesh

360mesh

0.23mm

0.15mm

100-110um

40mesh

400mesh

0.18mm

0.14mm

90-110um

50mesh

500mesh

0.14mm

0.11mm

70-90um

50mesh

600mesh

0.14mm

0.09mm

60-70um

80mesh

800mesh

0.12mm

0.07mm

45-65um

165mesh

800mesh

0.07mm

0.05mm

24-26um

120mesh

1000mesh

0.08mm

0.055mm

27-28um

165mesh

1450mesh

0.07mm

0.04mm

16-18um

325mesh

2300mesh

0.038mm

0.025mm

8-9um
