OVERVIEW



Types

•    Reverse twisted, single twisted and double twisted

Materials

•    High quality low carbon steel wire (Electro galvanized, hot dipped galvanized, PVC coated, Hot sprayed), in blue, green, yellow and other color.

Use

•    Suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing in railway, highway, etc.

Packing

•    In coil & with pallets as requested

Assortment:

•    Reverse twisted Barbed Wire

•    Single twisted Barbed Wire

•    Double twisted Barbed Wire

•    Galvanized barbed wire

•    PVC coated barbed wire

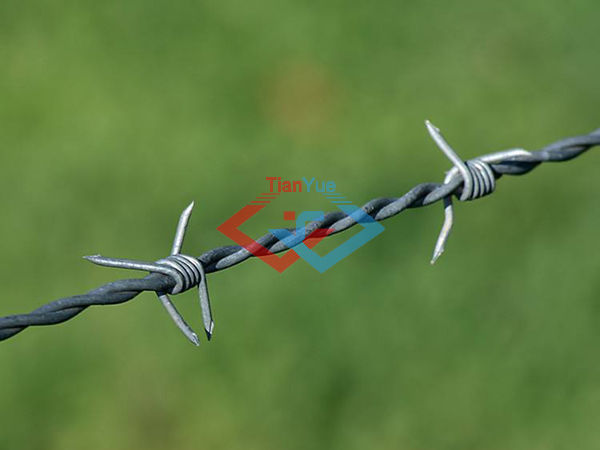

Barbed Wire
Strand x Barb	Approximate Length per KG in Meter
in B.W.G.	Barb Spacing 3"	Barb Spacing 4"	Barb Spacing 5"	Barb Spacing 6"
12x12	6.0617	6.759	7.27	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.719	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.562
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.659	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.507
15-1/2x15-1/2	15.3491	17.1144	18.406	19.3386
*Special   specifications can be produced by the customer’s   requirement.
