OVERVIEW

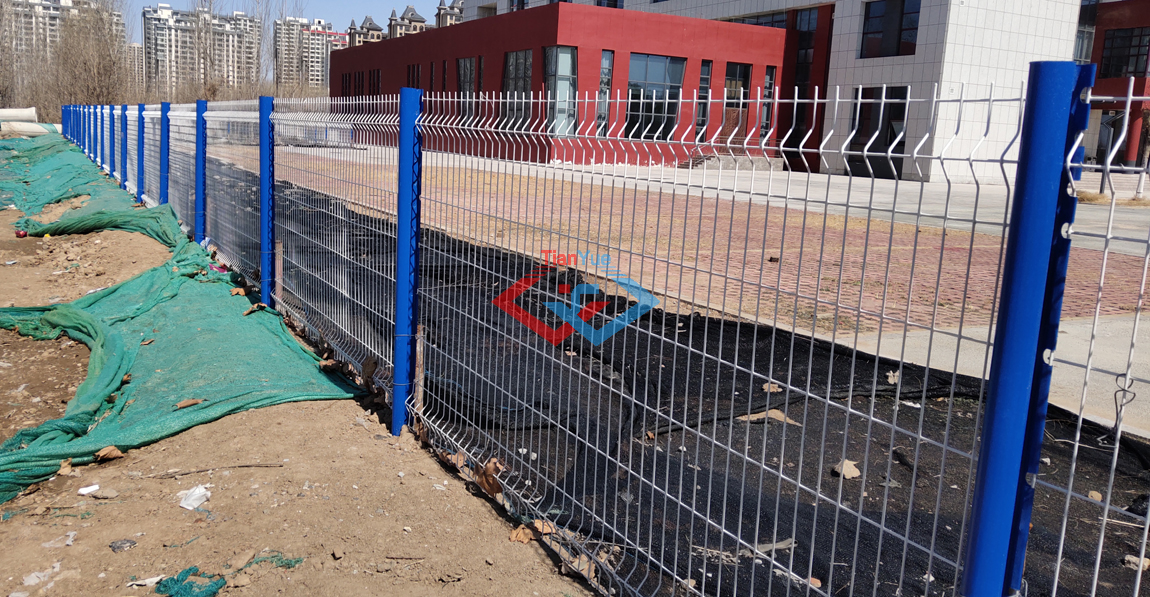

We produce and supply the complete range of wire mesh fences for various applications; mainly for expressway, airport, railway, garden fences, decorative fences, security fences, barbed wire fences, chain link fence, expanded metal fences, etc.



FEATURES

•   Materials: Low carbon steel wire, Al-Mg alloy wire, galvanized wire.

•   Folds number: 2, 3, 4, the number of folds depends on the height of the Fence.

•   Properties: Corrosion resistance, aging resistance, sunshine resistance and weather resistance.

•   Surface treatment: The wire mesh fence panels (sheet) can be electric galvanizing, hot-dipped galvanizing and PVC coating.

•   Accessories: The cross section of Peach Type Post (60x100mm)



SPECIFICATIONS

Fence Length(2m; 2.5m)
Height	Wire Dia.	Opening	Weight	Peach Type Post
cm	mm	mm	kg/pc	Weight kg/set
60	3,4,5,   6	50X120	8.6	1.9
80	3,4,5,   6	50X120	9.9	2.3
100	3,4,5,   6	50X120	11.2	2.7
120	3,4,5,   6	50X120	11.9	3.1
150	3,4,5,   6	50X120	14.5	3.7
180	3,4,5,   6	50X120	16.5	4.3
200	3,4,5,   6	50X120	17.8	4.7
Customer’s   specification and installation drawings are acceptable.
